Quick Sleeve™ Silicone Sleeve Install Tool
Patent-Pending Tool Enables Replacement of Silicone Sleeves in Record Time.

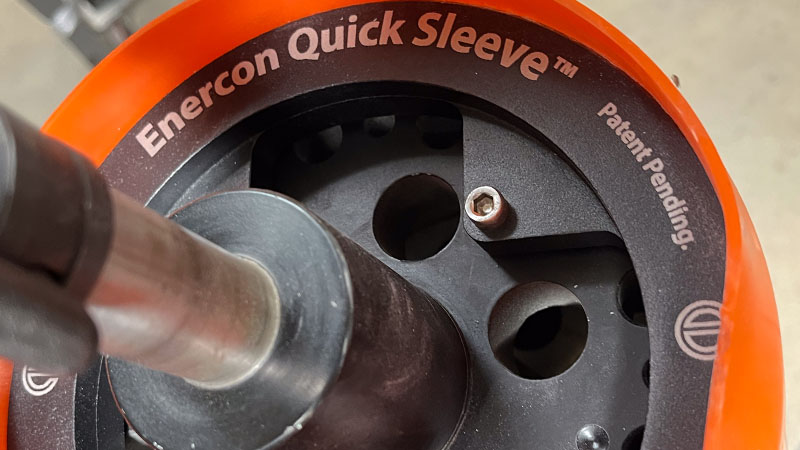

Enercon’s New Quick Sleeve™ features an innovative use of compressed air to allow a single person to easily slide a new silicone sleeve onto a ground roll. It attaches directly to ground rolls or with the use of an included clamp.
How to use the Patent Pending Quick Sleeve Install Tool
- Remove Old Sleeve
- Connect the tool to the ground roll with four screws. (Holes are pre-drilled by Enercon on new rolls & may be added in the field on older systems.)
- Connect 1/4” air line to the tool & lift eye to roll
- Thread air line & lift chain through the new sleeve
- Initiate sleeve install over the tool and the ground roll
- Turn on compressed air supply to tool
- Holes in the tool allow air to lift the sleeve away from the roll to enable sliding of the sleeve
down the roll - Slide sleeve down the roll until the roll is covered
- Disconnect the lift chain and tool.
- Trim the roll to size
- Install Treater Roll back into treater station and if any air bubbles are found knead them out before corona treating
