Pancake Pillow Block Load Cells
High Quality Load Cells for Reliability & Accuracy
Enercon Asia Pacific Load Cells are designed for rugged performance with the sensitivity for today’s challenging applications. Available in both dead and liveshaft configurations, Enercon Load Cells feature Full Wheatstone Bridge construction enable high sensitivity & low temperature drift.
| Technical Specification | |
|---|---|
| Gauge Resistance | 350 Ω |
| Temperature Range °F (°C) | -4 to +150 (-20 to +70) |
| Temperature Coefficient (% Per Degree) °F (°C) | 0.02 (0.01) typ. |
| Overload Protection | 10X OF Full Load Rating |
| Sensitivity | 1.0mV/V |
| Bridge Excitation | 10VDC |
| Outputs | 1.0mV/V,10mVdc Full Load Rating |
| Repeatability | 0.2% Of Full Scale |
| Flange Mounting | 4 HOLES |
| Protection | IP40 |
| Ball Bearings | Self-Lubricated |
| Load Ratings | 100 – 1500 N |
| Overload Stops Engagement | 105%-150% Of Full Load |
| Non-Linearity & Hysteresis | 0.5% Of Full-Scale Maximum |
| Construction Of Material | Nickel Plated Steel Body, Stainless Steel Body |
Enercon systems are designed to operate in a maximum ambient temperature of 40°C (104°F) @ 80% relative humidity, non-condensing.
KEY FEATURES Pancake Pillow Block Load Cell
-
Flange & foot mounting options available
-
Inbuilt overload protection
-
Stainless steel & nickel platted steel housing options available
-
Multiple bore sizes available for 500N
-

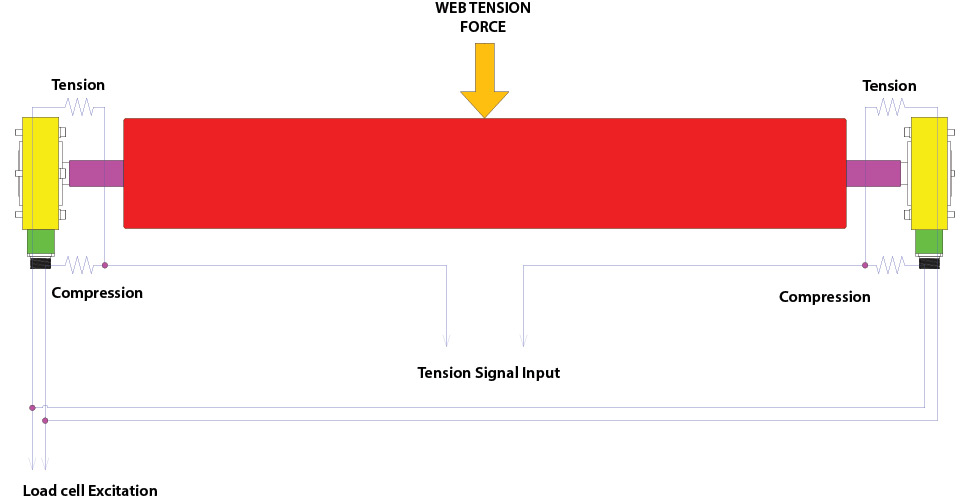

Full Wheatstone Bridge construction enable high sensitivity & low temperature drift
-
Self-aligned bearing will allow live shaft rollers to mount directly
-
Dead shaft and live shaft options available
